Humidity Measurement System
The device for measuring the moisture content of bulk materials (hereinafter referred to as the device) is intended for technological control of the mass of sheet and bulk materials during their manufacture on specialized equipment.
The one-sided humidity sensor (hereinafter referred to as the DVO) is used at enterprises as part of a complex of means for controlling material parameters.

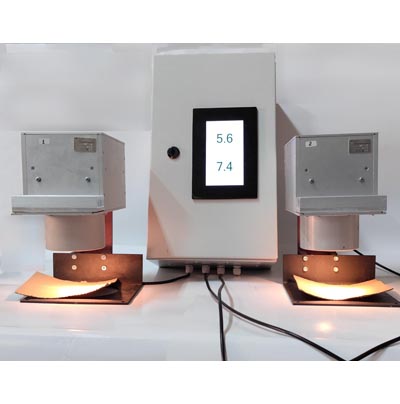

The system includes a control and display panel, as well as an optical sensor for measuring the moisture content of bulk materials of paper or cardboard.
It is possible to connect up to 4 sensors to the panel simultaneously.
The connection range without special modules is up to 30 meters from the sensor to the panel.
TECHNICAL SPECIFICATIONS
- Range of measured humidity values from 1.0% to 20.0%
- Upper and lower limits of the interval in which, with a probability of 0.95, the main absolute error of humidity measurement (moisture content) should be 0.5%
- Limits of permissible absolute errors of the material humidity measurement channel in operating conditions of use 0.8%
- Overall dimensions of the display unit 300mm x 200mm x 500mm
- Overall dimensions of the DVO 192mm x 200mm x 108mm
- Weight of the display unit 5.0 kg
- Weight of the DVO 4.0 kg
- Total power consumption not more than 30 VA
OPERATING CONDITIONS
- Ambient air temperature from +100 °C to +500 °C;
- Relative air humidity at a temperature of +25 °C to 80%;
- Atmospheric pressure from 84 kPa to 106.7 kPa.
- Unevenness of the bulk material cover +-5 mm.
